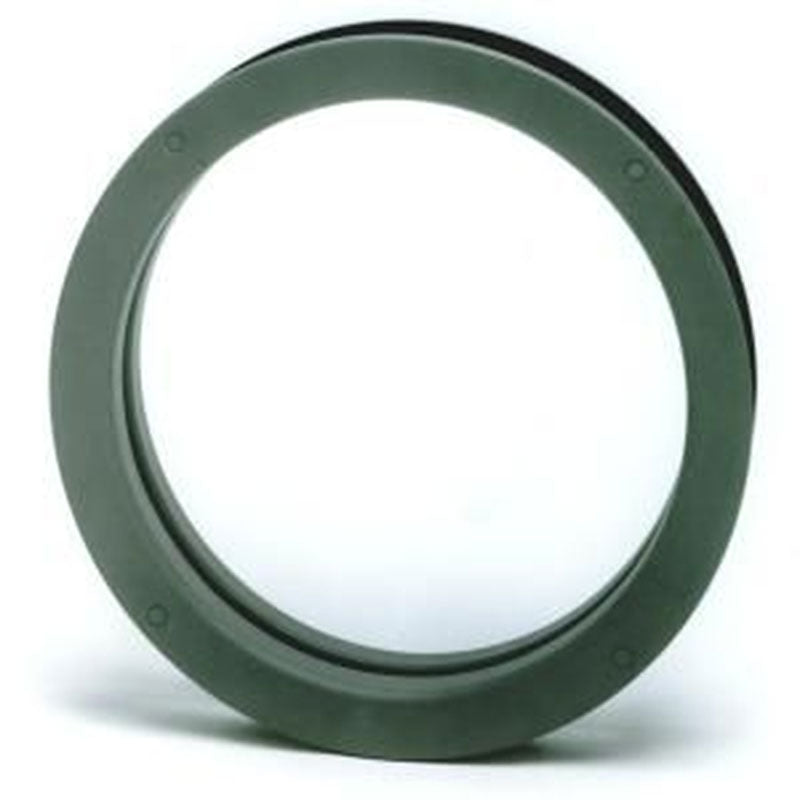

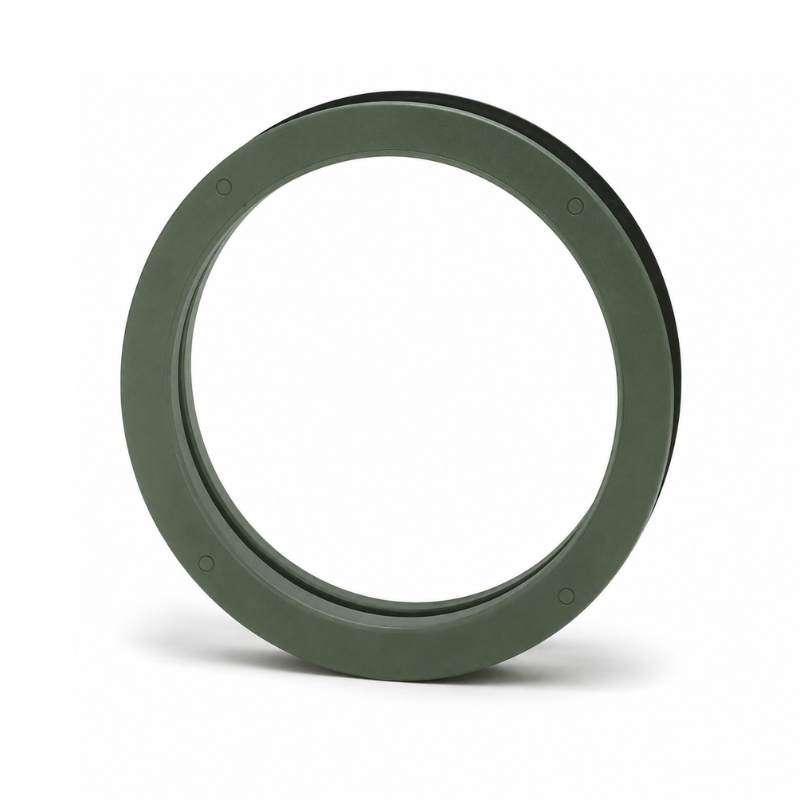

The Air Louvers VLFR-B is a Standard Round Shape Vision Kit, that is 1" Visible, is For use with 1 3/4" Thick Doors, is 18 Gauge, Accepts 3/16"-1/4" Thick Glass, is constructed of CRS (Cold Rolled Steel) is available in 12", 18" and 24" Diameter, and comes in a Mineral Bronze finish.
Product Specs
Material:
18 Gauge CRS Frame
Construction:
Circular - one-piece construction with no joints with 90-degree return. Countersunk mounting holes on both sides.
Size:
12", 18", 24" Diameter
Required Door Thickness:
1 3/4" Thick
Fasteners:
#8 x 32 Phillips head thru bolts with blank head on one side to match finish.
Powder Coat Finish
(B) Mineral Bronze (standard color)
Glass:
Not Supplied
Visible Glass:
Visible light is 1” under rough opening size. Glass size is 1/4” under order size.
