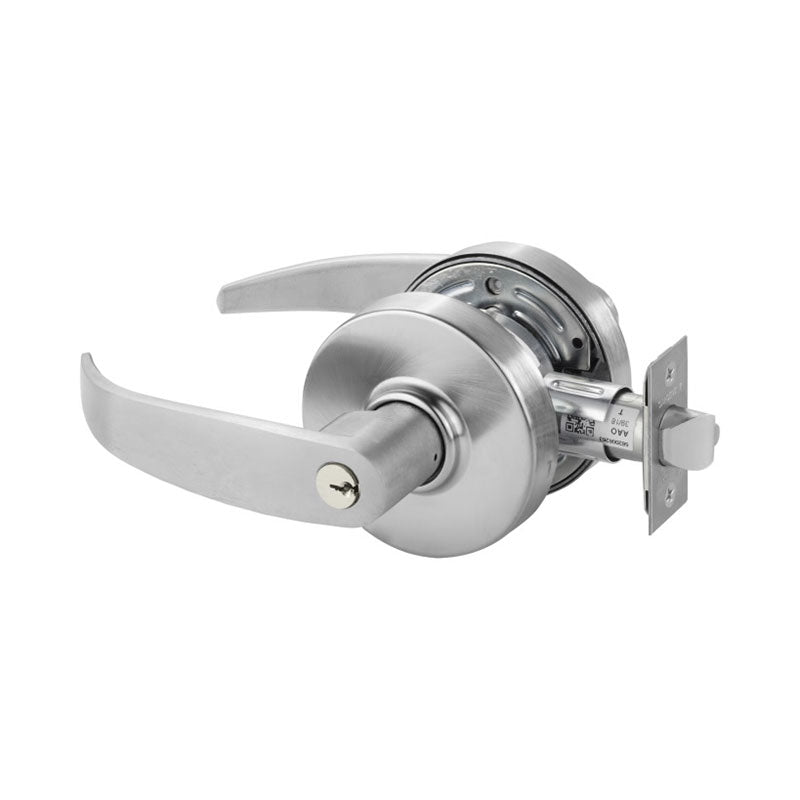

The Sargent 28-7G37-LP is a Classroom function cylindrical lever lockset that is Grade 2, comes with a Standard LA Keyway, an L Rose, with a P Lever, and comes in a variety of finishes.
7-Line Bored Lever Locks
Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.
A key-in-lever lock designed for standard-duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities, and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.
Manufacturer | Sargent |
SKU | 7G37 LP |
Grade | Grade 2 |
Installation | Commercial |
Origin | United States |
Unit of Measure | Each |
Base Material | Brass |
UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
ANSI Number | F109 |
Limited Warranty | 5 Year Warranty |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
Function | 37 Classroom |
Function Family | Classroom |
ANSI Function |
F84 - Classroom |
Lever/Knob Design | P Lever |
Rose/Escutcheon Design |
3-3/8" Rose Diameter |
Rose/Escutcheon Dimensions | 3-3/8" |
Cylinder Type |
Conventional Cylinder |
Num Pins | 6 |
Key(s) | Cut |
Num of Keys | 2 |
Handing | Non-handed |
Door Thickness | 1 3/4" |
Std. Latch Number | 193762 |
Std. Latch Type | Deadlatch |
Std. Latch Backset Dim | 2 3/4" |
Latch Bore Diameter | 7/8" |
Lock Face Size | 1 1/8" x 2 1/4" |
Bolt Projection | 1/2" |
Bore Hole Diameter | 2 1/8" |
Std. Strike Number | 808 |
Std. Strike Type | ANSI Curved Lip Strike |
Std. Strike Height | 4 7/8" |
Std. Strike Width | 1 1/4" |
Dust Box | None |
Screws | Wood/Machine Screws |
Product Type | Cylindrical Lock |
