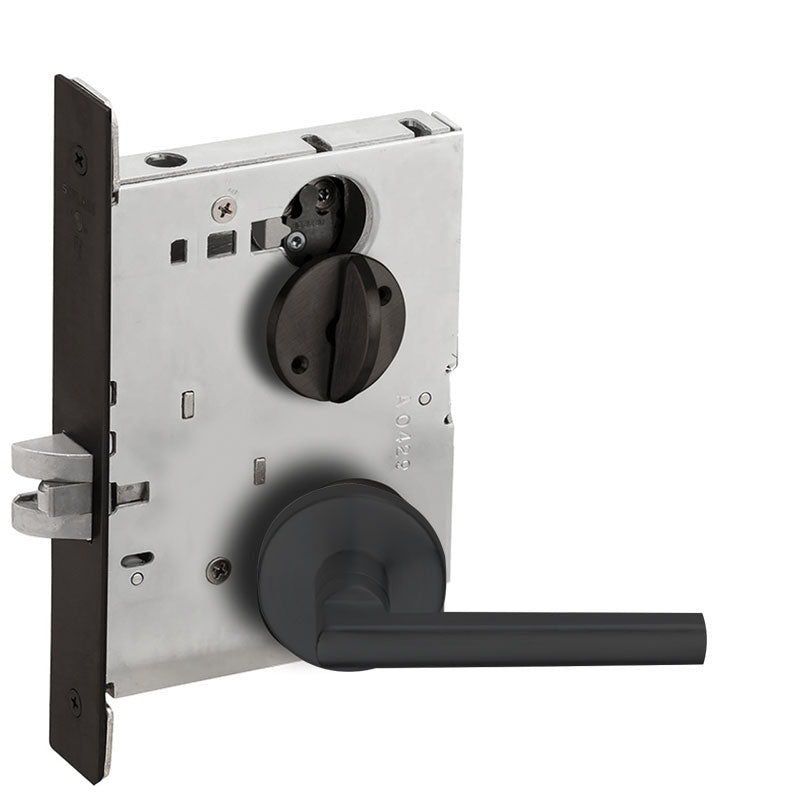

Schlage L9040-LATA-622 Bed Bathroom Privacy Mortise Lock, Latitude Lever, A Rose, Grade 1, Field Reversible, Flat Black Coated Finish

  • SKU: L9040LATA622

Schlage L9040-LATA-622 Bed Bathroom Privacy Mortise Lock, Latitude Lever, A Rose, Grade 1, Field Reversible, Flat Black Coated Finish

  • SKU: L9040LATA622
Sale price$811.37/ea
In Stock
In Stock
Visa Mastercard American Express Discover Shop Pay Apple Pay

Schlage L9040 LATA 622 Bed Bathroom, Privacy Mortise Lock, LAT Latitude Lever, A Rose, 4 7/8" Strike, Field Reversible, Flat Black Coated Finish

The Schlage L9040 LATA 622 is a Grade 1 Bed, Bathroom, Privacy function lock. This L9000 Series function is a 40 or Bed, Bathroom, Privacy function. A Bed, Bathroom, Privacy function lock functions, Latchbolt retracted by knob/lever from either side unless outside is locked by inside thumb-turn. Turning the inside knob/lever or closing door unlocks the outside knob/lever. The LATA is the LAT Latitude Lever and A Rose. The finish is a 622 Flat Black Coated finish.

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application. The ability to suit electronic, tubular, exit trim, and multi-point locks allow the Schlage L Series mortise lock to integrate seamlessly into any environment.



Manufacturer Schlage
SKU L9040 LATA 622
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL Listed
ANSI Number A156.13-2017 Series 1000, Grade 1
BAA Qualified Yes
Limited Warranty 3 Years
Fire Rated 3 Hours {A}
Finish 622/US19
Finish Description Flat Black Coated
Finish Family Black



Function 9040-Bed Bathroom Privacy
ANSI Function F22 - Privacy
Lever/Knob Design LAT - Latitude Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design A Rose
Rose/Escutcheon Dimensions 2 1/8"
Handing Field Reversible
Door Thickness 1 3/4"
Std. Latch Type Spring Latch (Unguarded)
Std. Latch Backset Dim 2 3/4"
Latch Bore Diameter 2 3/4"
Lock Face Size 8" x 1 1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 10-072 1316 622
Std. Strike Type ANSI Strike
Std. Strike Height 4 7/8"
Std. Strike Width 1 3/16"
Dust Box Plastic
Screws Machine
Product Type Mortise Lock


Cylinder Mortise Handing Chart
