6030 Series Concealed Closers
LCN's 6030 Series is a heavy duty, double acting closer designed to fit a narrow transom.
The single lever arm and roller assembly of the 6030 Series provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).

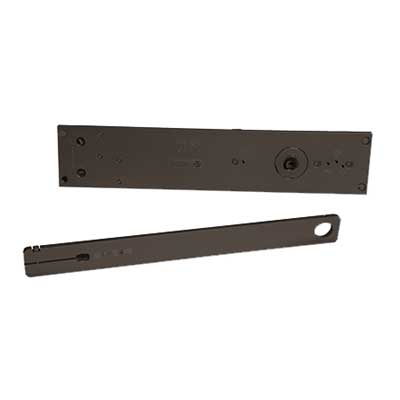

Standard 6030 series closer shipped with standard arm, standard track with bumper, mounting/finish plate and wood and machine screw pack
Sized, double acting cylinders for interior doors to 4’6” and exterior doors to 3’6”
Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
Closers to meet ADA requirements
Adjustment of spring power and latch speed independent for either swing
Backcheck and general speed adjustment are common for both swings
Standard or optional custom powder coat finish
Optional plated finish on arm, fasteners and mounting/finish plate
Optional SRI primer for installations in corrosive conditions
Manufacturer |
LCN |
SKU |
6035-BUMPER 695 |
Grade |
Grade 1 |
Installation |
Commercial |
Unit of Measure |
Each |
BAA Qualified |
Yes |
Limited Warranty |
15 Years |
Finish |
695 |
Finish Description |
Dark Bronze Painted |
Finish Family |
Dark Bronze |
Type |
Concealed Overhead |
Technology |
Hydraulic |
Mounting Location |
In Header |
Hold Open |
No |
Hand |
Non-Handed |
Degree Swing |
95 Deg. |
Cold Weather Fluid |
Yes |
Product Type |
Concealed-in-Door Closers |
