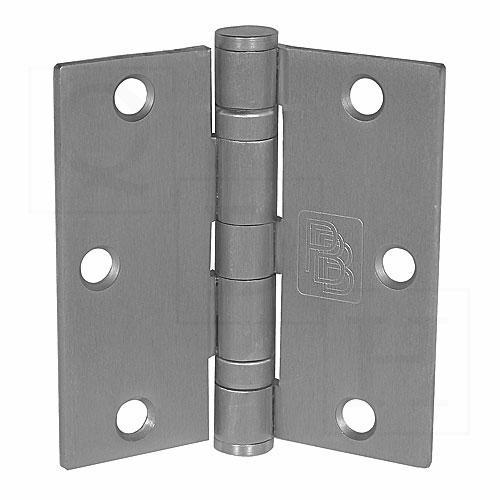

PBB BB81 3-1/2" x 3-1/2" Ball Bearing Hinge 5-Knuckle Full Mortise Standard Weight. BB81 Features Full Mortise, Wrought Steel, 3-1/2, 4" available in square, 5/8", 1/4" Radius Round Corners, All hinges are ANSI template
Specifications
General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
Material: | Steel-Polished and Plated or Bonderized and Prime Coated for Painting |
Material Gauge: | .123 ± .005 |
Size: |
Height: 3.50 (+.000/-.015) Width: 3.50 (+.000/-.015) |
Standard Screw Size: |
FHMS - 10-24 x 1/2" FHWS - 10 x 1" |
Packing Information: |
One hinge per plastic bag, 3 hinges and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes (18) machine screws and (18) wood screws |
Manufacturer: | PBB Inc. |
Certifications
ANSI: | A8112 |
