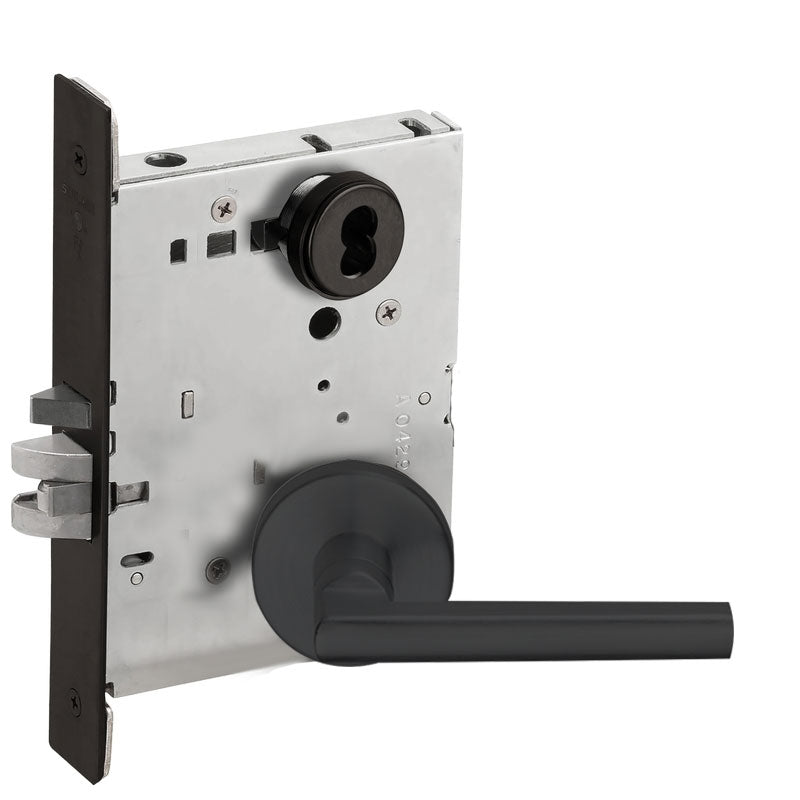

Schlage L9070B-LATA-622 Classroom Mortise Lock, SFIC Prep Less Core, Latitude Lever, A Rose, Field Reversible, Grade1, Flat Black Coated Finish

  • SKU: L9070BLATA622

Schlage L9070B-LATA-622 Classroom Mortise Lock, SFIC Prep Less Core, Latitude Lever, A Rose, Field Reversible, Grade1, Flat Black Coated Finish

  • SKU: L9070BLATA622
Sale price$887.83/ea
In Stock
In Stock
Visa Mastercard American Express Discover Shop Pay Apple Pay

Schlage L9070B LATA 622 Classroom Mortise Lock, SFIC Prep Less Core, LAT Latitude Lever, A Rose, Field Reversible, Grade 1, Satin Stainless Steel Finish

The Schlage L9070B LATA 622 is a Grade 1 Classroom function lock. This L9000 Series function is an 70 or Classroom function. A Classroom function lock functions, Latchbolt retracted by lever/ knob from either side unless outside lever is locked by key, Unlocked from outside by key, Auxiliary latch deadlocks latchbolt when door is closed, Inside lever always free for immediate egress. The LATA is the LAT Latitude lever and A Rose. B stands for the Sfic small format interchangeable core sold less cylinder. The finish is a 622 Flat Black Coated finish.

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.



Manufacturer Schlage
SKU L9070B LATA 622
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL Listed
ANSI Number A156.13-2017 Series 1000
Limited Warranty 3 Years
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 622/US19
Finish Description Flat Black Coated
Finish Family Black

Function 9070 Classroom
Function Family Classroom
ANSI Function F05 - Classroom
Lever/Knob Design LAT - Latitude Lever
Lever/Knob Design Family Straight Lever
Rose/Escutcheon Design A Rose
Rose/Escutcheon Dimensions 2 1/8"
Cylinder Type SFIC Prep Less Core
Num Pins 6 to 7
Cylinder Length 1 3/8"
Cam Type Schlage L
Cam Number L583-255
Handing Field Reversible
Door Thickness 1 3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2 3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 10-072 1316 622
Std. Strike Type ANSI Strike
Std. Strike Height 4 7/8"
Std. Strike Width 1 3/16"
Dust Box Plastic
Screws Combination
Product Type Mortise Lock


Cylinder Mortise Handing Chart
