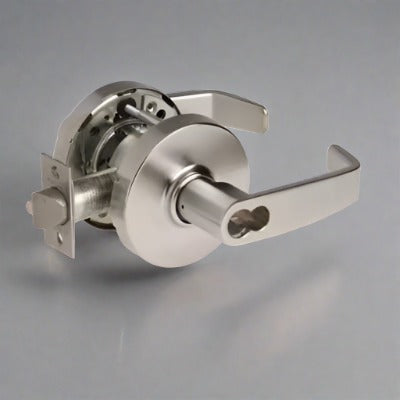

The Sargent 28-70-10G05-LL features an Entrance Office Function, providing Grade 1 specifications to ensure top-notch protection in institutions, schools, offices, healthcare facilities, and other high-security areas. Notably, the 70 option denotes that the lock is factory-prepared for a Small Format Interchangeable Core (SFIC).
The 28-70-10G05 Lock arrives SFIC Less core, equipped with a 2-3/4" backset and a 4-7/8" strike, complemented by an L-shaped rose and L-shaped lever.
Sargent 10 Line Lock Features:
Vendor | ASSA ABLOY |
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
Application | Heavy Duty |
Limited Warranty | 7 Years |
Fire Rated | 3 Hours {A} |
ANSI Function |
F81 - Office |
Handing | Not Handed |
Door Thickness | 1 3/4" - 2" |
Std. Latch Number | 44491 |
Std. Latch Type | Dead Latch (Guarded) |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 1" |
Lock Face Size | 2 1/4" x 1 1/8" |
Bolt Projection | 1/2" |
Bore Hole Diameter | 2 1/8" |
Std. Strike Number | 808 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4 7/8" |
Std. Strike Width | 1 1/4" |
Dust Box | None |
Screws | Combination |
Product Type | Cylindrical Lock |
